Code 9051202

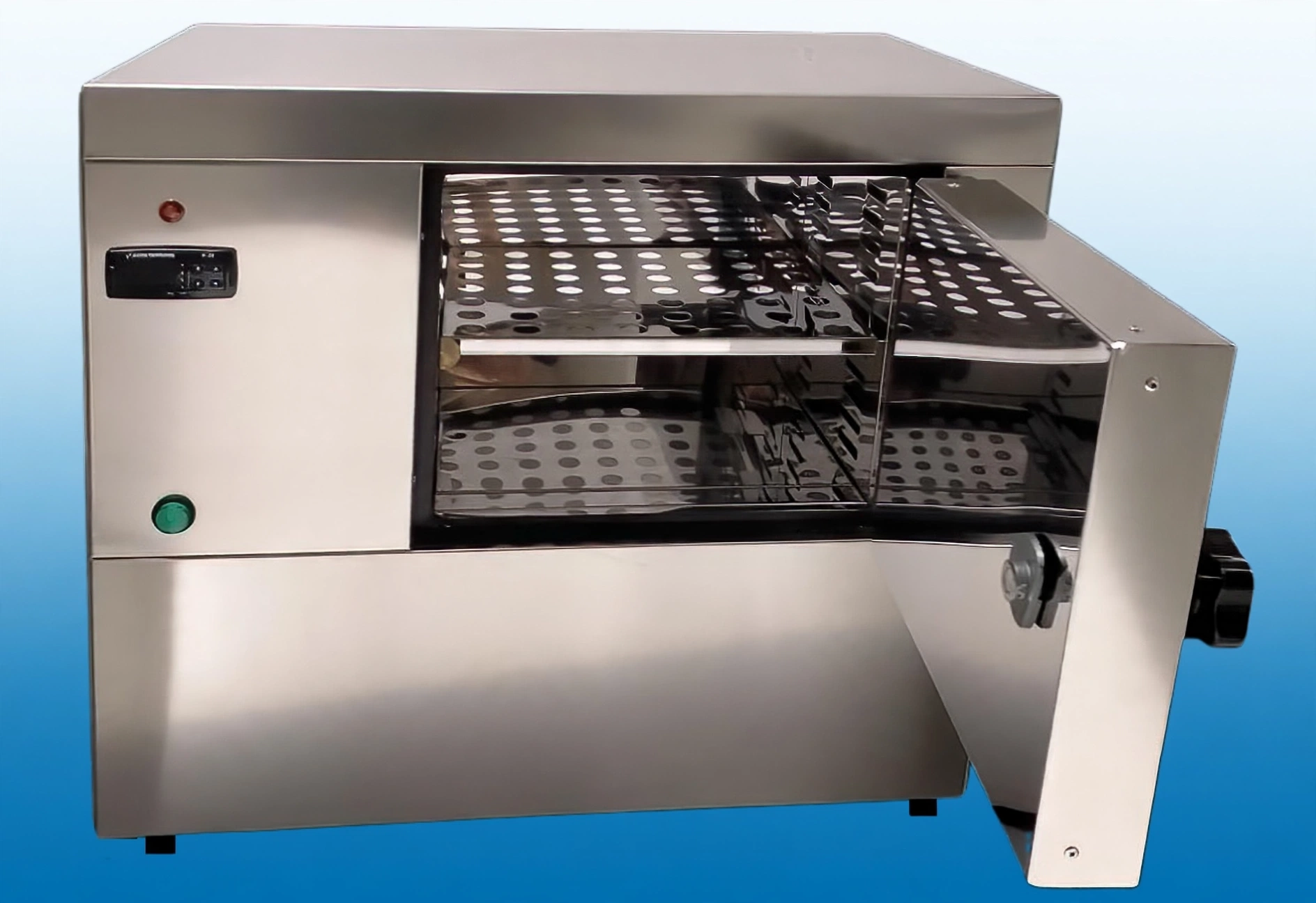

SCN 21 P - Primo Series natural air convection thermostatic oven

capacity 20 liters

Our thermostatic ovens may be employed in different applications as, for example, for dry sterilization cycles, for thermal tests on materials (to verify resistance or deformations), or for any other work needing a uniform and careful warming process.

KEY FEATURES

  • Full stainless steel construction, internal walls AISI 430, external structure AISI 304 “Scotch Brite”, allows maximum corrosion resistance and easy cleaning

  • Internal chamber with laminar air circulation and uniform warmth distribution offered by two lateral convection ducts with perforated walls and by resistors position in pre-warming chamber

  • Thermal insulation by high quality mineral fiber in adequate thickness.

  • Front door with thermal insulation with silicone rubber gasket.

  • Perforated stainless steel AISI 430 lean shelves, extractable and fixable on different heights.

  • Rear through-hole for air/fume exhaust and any temperature monitoring probes

  • Rubber antiskid feet adjustable in height.


STANDARD HEAT REGULATION EQUIPMENT

  • Digital microprocessor P.I.D. temperature controller with auto-tuning and PT100 platinum probe

  • Temperature range: from +10°C above ambient temperature to +250°C

  • Three-digit display resolution (1°C increments – optional 0.1°C); dual display showing actual temperature and set point simultaneously

  • Overtemperature safety device (Class 2 – DIN 12880) with a trigger threshold linked to the set point (fixed at 5°C above setpoint) to protect against main controller or probe failure; includes visual alarm

  • Chamber temperature uniformity: ± 2.0°C at 150°C

  • Temperature stability (over time): ± 0.3°C at 150°C

  • Compliant with European Council Directives 2006/42/EC (Machinery Directive), 2014/35/EU (Low Voltage Directive),2014/30/EU (Electromagnetic Compatibility Directive), and EN 6101-1:(2001) standards.

  • Factory temperature calibration certificate (standard 1-value, at 3 points within the chamber)



MADE IN ITALY

On request:
- 4 wheels Kit for floor stand (n.2 with brake)



Internal dimensions in mm LxHxP 310x260x250
External dimensions (excluding opening handle) in mm LxHxP 610x575x385
Capacity liters 20
No shelves supplied 1
No doors 1
Weight in Kg 25
Absorbed power W(230V 50-60Hz) 800

Other voltage / voltage execution on request

Thermostatic ovens of special sizes are built or on the customer's technical specifications and for continuous operation from 250 to 400 ° C
