Code K3DAB220

Moisture meter mod. DAB 200-2IR

Moisture meter with infrared lamp made of high-quality quartz glass – ideal for rapid recurring tests

Features:

Version with lower resolution, whereby the switch-off criterion is reached faster, which saves time. Ideal for quick tests and spot checks

External calibration weight

Backlit Graphic display, digit height 14 mm

400 W infrared lamp

Observation window above the sample, useful during initial setting

Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out

The last value measured remains on the display until it is replaced by a new measurement

50 sample plates included

Application handbook: On the internet, you will find a practical application handbook

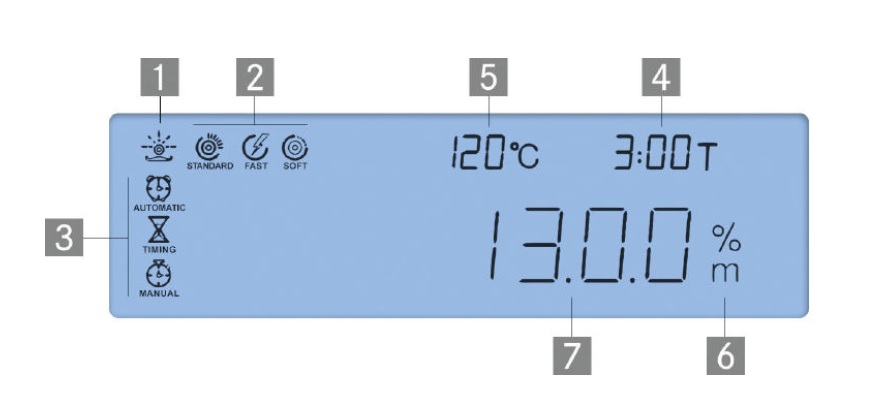

Drying process active

Active heating profile

Active switch-off criteria

Previous drying time

Current temperature

Current moisture content in %

Upon request

DAKKS certificate 3k 963127
Company calibration certificate 3K 364305
Field adjustment 3k 961247

Spirit level and adjustable feet for exact leveling of the balance; for highly accurate weighing results

External calibratioN

Technical data

Backlit LCD display, digit height (large) 14 mm (small) 6 mm

Weighing surface dimensions, aluminium
- ∅ 92mm

Scale dimensions W×D×H 240×365×180 mm

Net weight approx. 4.8kg

Permissible ambient temperature 5 °C/40 °C

Permissible humidity 5-80%

Max range g	Division g	Readability moisture (%)	Reproducibility g
200	0.01	0.05	0.01

Weighing capacity [Max]	200 g
Readability [d]	0,01 g
Weighing system	Strain gauge
Temperature [Min] (°C)	40 °C
Temperature [Max] (°C)	160 °C
Stabilization time	3 s
Units	g, % Humidity, % Dry mass
Reproducibility	0,01 g
Linearity	± 0,03 g
Readability moisture [d] (%)	0,05%
Drying modes	Standard drying, Rapid drying, Gentle drying
Switch-off criteria	time controlled, automatic, manual
Input voltage device / power [Max]	230 V AC, 50 Hz
