HC series refrigerated water baths

Temperature range: from -15.0 ° C to + 99.9 ° C ÷ + 200 ° C or from -30.0 ° C to + 99.9 ° C ÷ + 200 ° C

These refrigerated baths, laboratory cryostats allow you to work around and below room temperature, up to high temperatures.
They are used in precision thermostatic applications in all laboratories.
They are built in stainless steel and insulated for maximum energy savings.
They are supplied complete with external recirculation connection by means of a pump, allowing the circulation of fluids at a controlled temperature in external circuits.

They are available with tanks with volumes of 9, 20, 30 and 46 liters.


Features
• AISI 304 stainless steel tank with rounded corners
• Exterior in steel with epoxy paint
• Excellent insulation = Energy saving
• Hermetic refrigeration unit with air condenser
• Ecological Gases Respectful of the environment
• Digital PID microprocessor control, accurate and sensitive
• Double digital display, which simultaneously displays the set temperature and the internal temperature
• Platinum PT100 Class A temperature probe
• Temperature range: from -15.0 ° C to + 99.9 ° C ÷ + 200 ° C or from -30.0 ° C to + 99.9 ° C ÷ + 200 ° C
• Independent safety thermostat
• Circulation pump 5L / min. 2 m
• Connections for external recirculation
• Flat lid with handle


Standard equipment
• Power cord
• Instruction manual
• CE certificate of conformity
• Warranty certificate


Accessories on request
• Drain cock
• 1 meter silicone hose with thermal insulation
• Viton tube with thermal insulation 1 meter
• 2 pieces hose clamp

Special sizes and volumes on request

Made in Italy

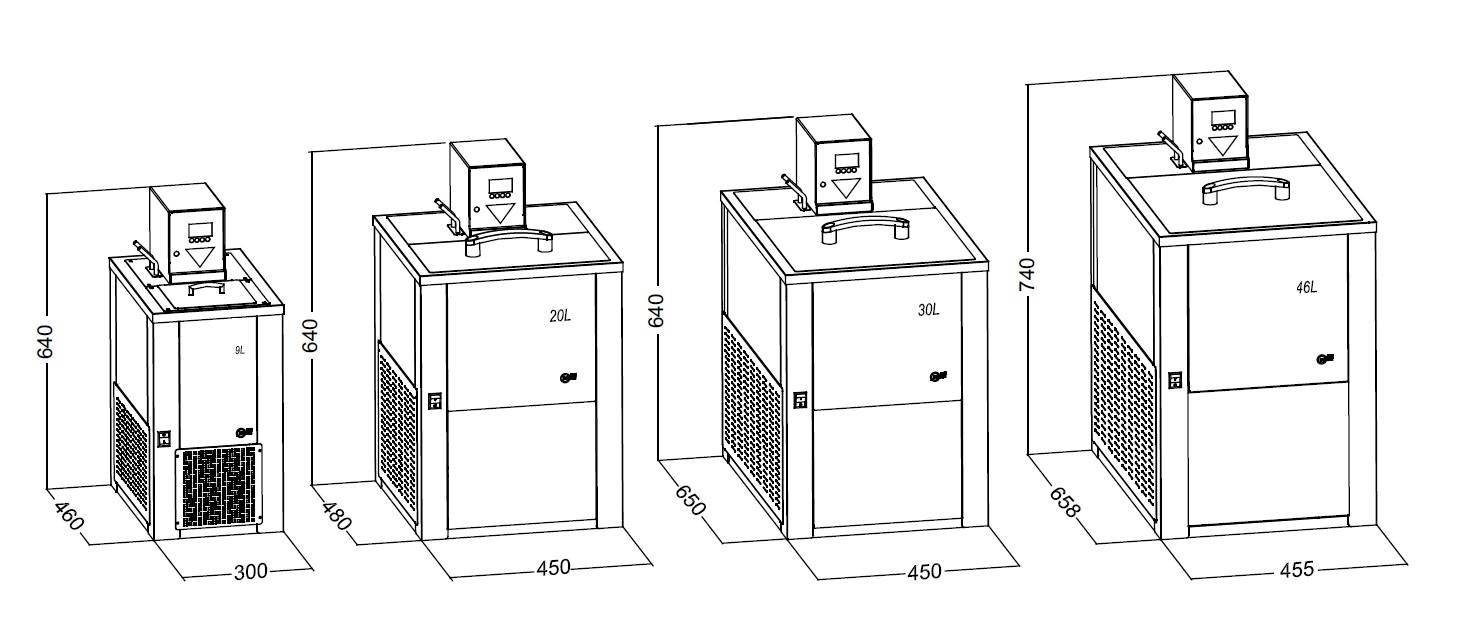

Code Description Liter capacity Temperature range Dim. external mm LxWxH Dim. useful mm LxWxH Power W Weight Kg
G3HC0109 Refrigerated water bath HC series 9 liters 9 -15°C...+99,9°C 300x460x640 150x130x200 1000 27/30
G3HC0120 Refrigerated water bath HC series 20 liters 20 -15°C...+99,9°C 450x480x640 300x150x200 1000 35/38
G3HC0130 Refrigerated water bath HC series 30 liters 30 -15°C...+99,9°C 450x650x640 300x320x200 1000 47/50
G3HC0209 HC series refrigerated water bath 9 liters 9 -15°C...+200°C 300x460x640 150x130x200 2000 27/30
G3HC0220 Refrigerated water bath HC series 20 liters 20 -15°C...+200°C 450x480x640 300x150x200 2000 35/38
G3HC0230 Refrigerated water bath HC series 30 liters 30 -15°C...+200°C 450x650x640 300x320x200 2000 47/50
G3HC0246 Refrigerated water bath HC series 46 liters 46 -30°C...+99,9°C 455x658x740 305x328x300 2000 55
G3HC0309 Refrigerated water bath HC series 9 liters 9 -30°C...+99,9°C 300x460x640 150x130x200 2000 27/30
G3HC0320 Refrigerated water bath HC series 20 liters 20 -30°C...+99,9°C 450x480x640 300x150x200 2000 35/38
G3HC0330 Refrigerated water bath HC series 30 liters 30 -30°C...+99,9°C 450x650x640 300x320x200 2000 47/50
G3HC0346 Refrigerated water bath HC series 46 liters 46 -30°C...+200°C 455x658x740 305x328x300 2000 55
G3HC0409 Refrigerated thermostatic bath HC series 9 liters 9 -30°C...+200°C 300x460x640 150x130x200 2000 27/30
G3HC0420 Refrigerated water bath HC series 20 liters 20 -30°C...+200°C 450x480x640 300x150x200 2000 35/38
G3HC0430 Refrigerated water bath HC series 30 liters 30 -30°C...+200°C 450x650x640 300x320x200 2000 47/50
