Code B4222063

Digital magnetic stirrer with microprocessor with heating plate mod. M2-D PRO - stainless steel plate diam. 135 mm

up to 1500 rpm - up to 20 liters

Magnetic stirrer with new stirring technology, ideal for work without control
Multifunction LCD display with continuous indication of speed and set temperature.
Stainless steel plate
Adjustable stirring speed
Electronic speed control motor, constant speed even during load changes
Accurate heating regulation and safe temperature control
High magnetic force, prevents blockage of the magnetic stir bar and ensures that the "stirring" function does not undergo variations due to external factors
Automatic positioning of the magnetic stir bar
The external structure (IP42) and the brushless motor guarantee a long activity
Separate safety circuit, automatic temperature block when 350 ° C is exceeded

Supplied without support rod and external temperature probe

Stirring speed: 0… 1,500 rpm, heating temperature: Max 340 ° C.
Heating power: 500W.
Max stirring volume: 20 L.
Plate diam. 135 mm in stainless steel.
Maintenance-free induction motor.
Degree of protection: IP 42.
Microprocessor for accurate control of functions
RS232 interface for PC control.
Two adjustable safety circuits
Separate temperature sensors, selectable protection level
Temperature probe for control inside the stirred product (PT1000 on request)
Warning sign on the display indicating the presence of residual heat after turning off the agitator heating
According to DIN 12878 for use with contact thermometers

External dimensions of the product

Height:	65	mm
Width:	280	mm
Depth:	160	mm
Weight:	2.8	Kg

Documentazione

Accessories

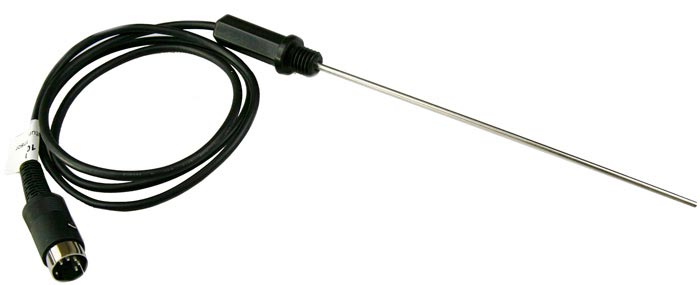

	Code B4222513 PT1000 probe, 230 mm length for M2-D Pro and M3-D

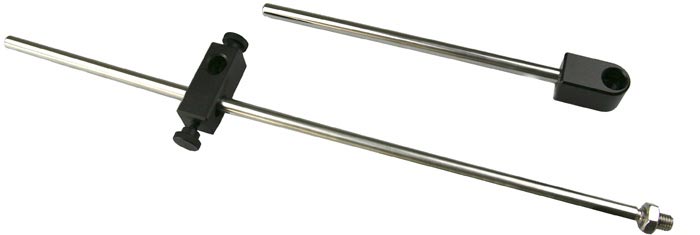

	Code B4222523 Adjustable PT1000 holder for M2-D Pro and M3-D
