Code 1221008

Double NEUBAUER blood cell counting chamber without pliers

with dark lines grid

Description
Attachments

The counting chambers differ in the counting grids and in the depth of the chambers.
Perpendicular lines, engraved in the surface of the base of the chamber, form a grid that becomes visible under the microscope.

Approved for in vitro diagnostic (IVD) applications, according to IVD directive 98/79 / EC, with CE mark

On request, blood cell counters with “Bright Lines” grating are available which facilitate the evaluation of the sample thanks to the luminous lines that contrast well with the dark background.

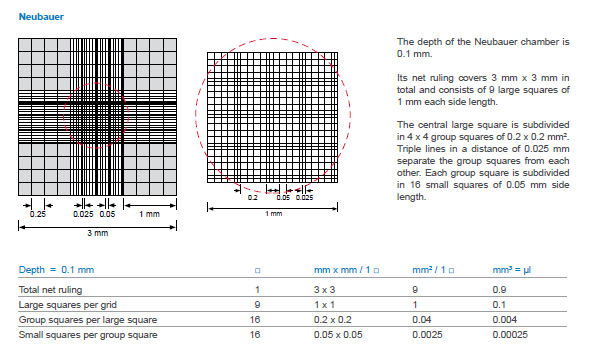

The depth of the Neubauer chamber is 0.1 mm.
The grid covers 3 x 3 mm in total and consists of 9 large squares of 1 mm².
The central square is divided into a group of 4 x 4 squares of 0.2 x 0.2 mm².
Triple lines 0.025 mm apart, separate the groups of squares from each other.
Each group of squares is subdivided into other 16 having a side of 0.05 mm.

PLEASE NOTE: The image is purely indicative
