The technical solutions adopted for this line of evaporators introduce a new concept in routine distillation/evaporation processes: safety, efficiency and durability to support the work of laboratory users!

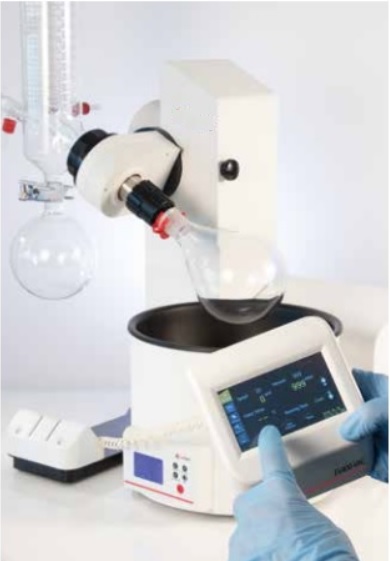

With an innovative and ergonomic design, the EV series rotary evaporators include digital color display to monitor and control rotation speed and temperature, motorized vertical lift, evaporation flasks, sample line addition via PTFE valve and can be completed with the vacuum and cooling accessories included in the range to achieve maximum process efficiency. The autonomous heating bath guarantees maximum safety in operations and ease of maintenance.
Main applications:
Solvent recycling
Distillation of the solvent
Powder drying
Chemical synthesis
Extraction
Research
Concentration of the active agent
Vacuum distillation of sensitive substances
Separation of the liquid mixture
Technology & Design
• Digital rotation speed control and temperature display ensure stability and accuracy to individual operations
• Trouble-free operation and long life
• The PTFE sealing ring guarantees excellent elasticity and resistance to high temperatures, and to corrosion by and solvents
• Addition of samples via PTFE valve which guarantees high efficiency and ease of use
• Automatic protection against lifting in the event of a power failure
• Preloaded solvent library
Safety and ease of use

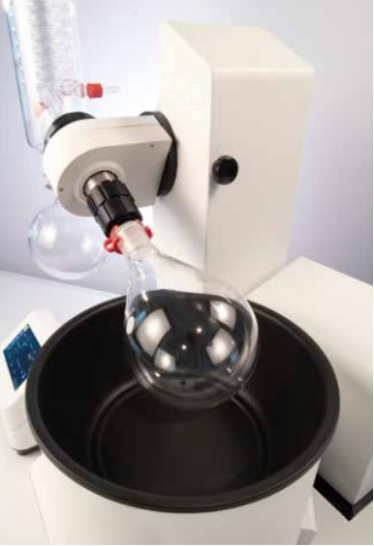

• The autonomous heating bath guarantees maximum safety and ease of maintenance
• Motorized vertical lifting (depending on the model)
• Wide range of evaporating flasks
• Self-calibration function and wide temperature range control: from room temperature up to 230°C
• Automatic shutdown of heating in dry bath conditions
• Innovative design to prevent corrosion and splashes
• Removable front panel
MAIN UNIT FEATURES
Sample volume range (ml)
|
50 - 3000
|
Rotation speed range (rpm)
|
20-300
|
Display
|
LCD
|
Lift
|
Manual
|
Lifting stroke (mm)
|
150
|
Flask rotation
|
50 - 2000 ml |
Clockwise / counterclockwise rotation
|
Yes |
Head tilt angle (°)
|
0-60
|
Condenser
|
vertical or diagonal
|
Motor power W
|
40
|
Cooling surface (cm2)
|
1200 Standards 1500 Optional
|
Clockwise Counter / Rotation
|
Yes
|
Gradient distillation
|
-
|
Built-in vacuum controller
|
-
|
Solvents library
|
-
|
Vapor temperature
|
-
|
Automatic distillation
|
-
|
HEATING BATH FEATURES
Temperature range (°C)
|
Ambient - 230
|
Temperature controller mode
|
P.I.D. with digital display
|
Bath material
|
Stainless Steel with PTFE Coating
|
Temp. control accuracy (°C)
|
±1 (Acqua) ±2 (Olio)
|
Heating Power (W)
|
1300
|
Bath capacity (L)
|
5
|
Evaporation flask:
|
1000 ml - 29/32 connection size
|
Receiving flask:
|
1000 ml - 35/20 round connection size
|
GENERAL FEATURES
Protection class (IP)
|
21
|
Dimensions* (LxPxH cm)
|
38x56x90
|
Gross Weight* (Kg)
|
23
|
Power supply voltage
|
230V 50/60 Hz
110V 60Hz
|
Fuses
|
10
|
Consume (W)
|
100
|
*including glassware
