Code C423901D

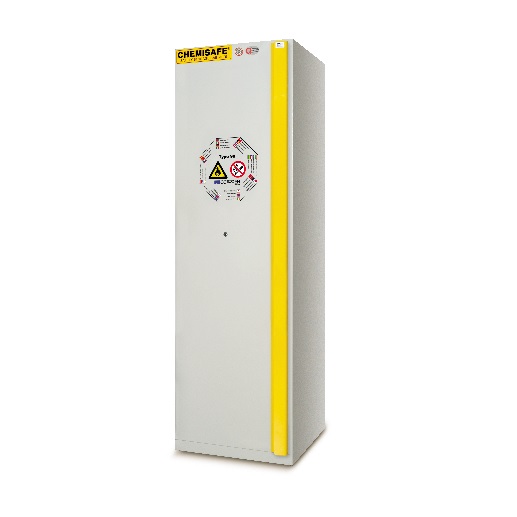

Cabinet 60 BASIC type 90 - handle on the right

for flammable products - fire resistance 90 minutes

Entirely constructed in pickled steel sheet with thicknesses of 1 / 1.5 mm cold pressed, painted with antacid epoxy powders and subsequent passage in a thermal tunnel at 200 ° c

Monolithic structure

Particular insulation formed by high-density fiber panels (free from Fibroceramics) for high temperatures (800 ° C) and calcium sulphate panels.

Internal body with internal finishing panels in melamine laminate with high resistance to even aggressive vapors

Certification according to the new EN 14470-1 standard.


Features:

  • Automatic hydraulic door closing with temperature above 47 ° C
  • Lock with key and door lock
  • Adjustable feet
  • Automatic closing valves (70 ° C) of the air inlet and outlet ducts, certified for 90 minutes, placed on the top and bottom of the cabinet.
  • Ejection hole diam. 100 mm. on the roof of the cabinet
  • Non-sparking zipper
  • 3 cm thermodilating gasket. (DIN 4102).
  • Sealing gasket for vapors and dust.
  • 3 steel tray shelves (approx. 7 liter capacity) capacity 60 kg evenly distributed, certified. Dim. Mm. 495 x 420 x 39 h rounded edges. Adjustable in height with stainless steel pegs
  • Bottom basin in painted steel with support grid Dim. Mm. 495 x 445 x 100 h (capacity approx.20 liters)
  • Ground terminal to prevent electrostatic charges.
  • Storage capacity: volume 350 liters - about 80/100 1 liter bottles per cabinet
  • External dimensions: 595x600x1950 mm (LxWxH).
  • Internal dimensions: 496x446x1540 mm (LxWxH).
  • Weight: about 235 kg.



LAPI TEST REPORT n ° 1582.0EN0100 / 10

CERTIFICATE BV n ° 547 / 001A



Available on request:

- additional shelves in painted steel / stainless steel

- yellow version
