Code V1220280

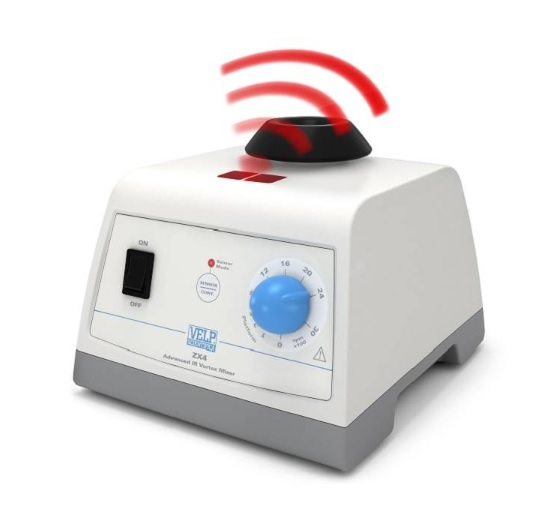

Vortex mixer mod. ZX4 variable speed

up to 3000 rpm

Vortex mixer with adjustable stirring speed, in continuous or with the exclusive IR sensor

IR Sensor, New Conception of Vortex Mixers

ZX4 Vortex mixer featuring the highly innovative and patented IR technology to reduce repetitive strains. IR sensor and Continuous mode available.

■ Vibration starts when tube is detected by IR
■ IR sensor and continuous modes
■ Variable speed operation, electronically controlled up to 3000 rpm
■ Optimum resistance to chemicals from technopolymer casing
■ Excellent stability with zinc alloy base
■ IP 42 protection against particles and liquids
■ No fatigue as no pressure is required

Resistent and versatile

Variable speed operation, electronically controlled up to 3000 rpm
Large choice of accessories to suit tubes, plates and flasks
Universal voltage / frequency model
Accessories fit by simple pressure
Optimum resistance to chemicals from technopolymer casing
Large, anti-slip rubber feet for staying in required position
Designed for the longest lifespan and guaranteed by 3 years warranty

Accessories on request:

Accessori a richiesta:

	Microtiter platform (127x85 mm not included)
	Platform for n ° 19 microvials 1,5 ml type Eppendorf®
	Platform for n ° 4 test tubes Ø 29 mm
	Platform for 5 tubes Ø 16 mm
	Customizable platform
	Universal platform Ø 50 mm

When using platforms, do not exceed a speed of 800 rpm as high speeds may cause the sample to spill

CONSTRUCTION MATERIAL:	zinc alloy and technopolymer
SUPPORT SYSTEM:	4 anti-sliding feet
ORBITAL DIAMETER:	4.5 mm
SPEED SETTING:	analog
SPEED CONTROL:	electronic
SPEED:	up to 3000 rpm
OPERATING MODES:	infrared sensor, continuous
ELECTRONIC PROTECTION DEGREE CEI EN 60529:	IP 42
POWER:	15 W
WEIGHT:	2.7 Kg (5.9 lb)
DIMENSIONS (WXHXD):	150x130x165 mm (5.9x5.1x6.5 in)

External dimensions of the product

Height:	130	mm
Width:	150	mm
Depth:	165	mm
Weight:	2.7	Kg
