Code V1511460

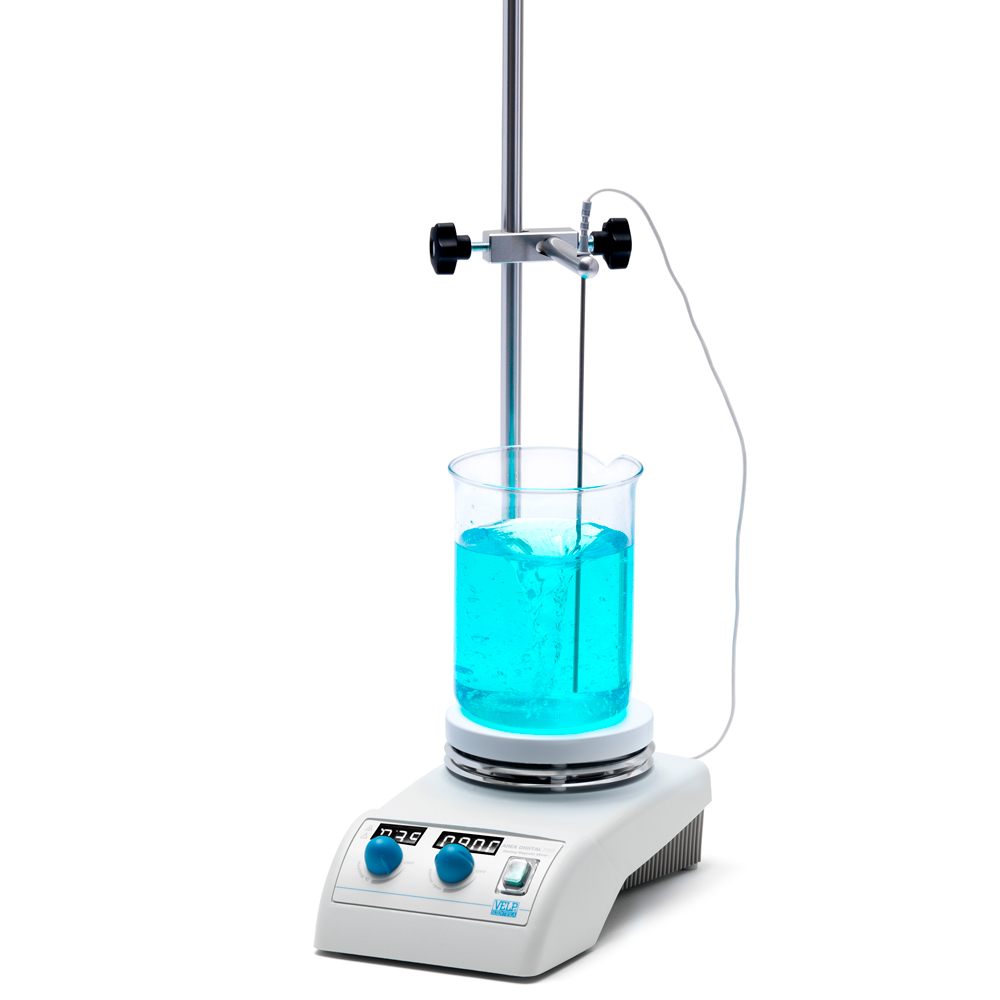

AREX-6 Digital PRO heating magnetic stirrer with PT100 probe, support rod and forceps

up to 1700 rpm - up to 20 liters

Digital heating magnetic stirrer with ceramic coated aluminum plate, timer, rotation inversion that ensures maximum precision in thermoregulation and stirring of the sample.

Safety first
AREX-6 Digital PRO are equipped with 2 independent temperature reading circuits that protect the instrument in case of malfunction of one of the two.
If the probe is not inserted in the sample being analyzed, the instrument stops heating, showing a safety message on the display.

AREX-6 Digital PRO are equipped with the most advanced technology and allow you to set the maximum temperature limit required by analyzes with specific temperatures.

AREX-6 Digital PRO is an IP42 product designed to guarantee years of use and resistance in the laboratory. The structure and materials protect the internal parts of the instrument from possible damage. The silicone cover ensures further protection of the instrument from possible spills or splashes.
State-of-the-art thermoregulation
AREX-6 Digital PRO offers the best thermoregulation available. The PID thermoregulation system guarantees stable , fast temperature control with minimum overshoot
VTF and Pt100 probe allow accurate and precise temperature control.It is possible to choose between 2 different thermoregulation modes :
  • FAST : The set temperature is reached quickly.
  • FINE : The set temperature is reached slowly by minimizing overshoot.
New interface for easy use
The bright LED display and intuitive icons allow easy reading of the instrument's working conditions.
The connection of the probe or thermoregulators, the activation of the heating, the reaching of the set temperature, the activation of the timer and the inversion of rotation are information provided by the new icons .

Lock the tool by pressing the middle button for 3 seconds, a white LED flashes if an interaction is detected.The speed and temperature are set precisely by the sensitive knobs , and are activated only after a light pressure.AREX-6 Digital PRO is equipped with an advanced menu that allows you to configure the instrument with the characteristics that best suit the needs of the individual laboratory.


Unprecedented performance
The brushless motor allows stirring up to 20 liters at an adjustable speed from 30 to 1700 rpm . Thanks to the SpeedServo ™ system, the speed is kept constant even when the viscosity changes.
The Alnico magnet guarantees homogeneous stirring, even in the peripheral areas of the plate and a powerful magnetic coupling between the motor and the stir bar, a very important aspect with the use of accessories.

The CerAlTop ™ plate, made of aluminum alloy coated with a ceramic layer, guarantees homogeneous and fast heat transfer over the entire surface. In addition, the thin ceramic layer protects the plate from scratches and chemicals.
Integrated timer and reverse rotation

Accessories
Oil baths and heating mantles replaced with spherical caps
The new spherical caps are the perfect solution to replace oil baths and heating mantles. Furthermore, they adapt perfectly to both the plate diameter of 135 mm and the shape of the tubes allowing a fast transfer of heat from the plate to the tube.
To increase protection and reduce heat loss, VELP has designed the new PTFE covers.
More versatility with the new MonoAlublock ™ and MultiAlublock ™
The MultiAlublock ™ and the new MonoAlublock ™ made of aluminum are ideal for carrying out numerous agitation and heating analyzes, reducing time and space in the laboratory.
  • MonoAlublock ™ are the ideal solution for all those applications that require analysis in tubes of the same size.
MultiAlublock ™ are modular and of different types to support various tube sizes. Thanks to their modularity, it is possible to choose the mix that best suits your needs
INTERFACE Digital
MOTOR Brushless
HEATING PLATE CerAlTop ™ (Aluminum with special protection)
DIAMETER OF THE HEATING PLATE 135 mm
STIRRING CAPACITY (H2O) Up to 20L
ELECTRONIC REVOLUTION ADJUSTMENT 30-1700 rpm
ACCURACY IN SPEED ADJUSTMENT 5 rpm
SPEED CONTROL Digital
CONTROREACTION SYSTEM SpeedServo ™
TEMPERATURE ADJUSTMENT Room temp. - 370 ° C
TEMPERATURE RESOLUTION Digital
TEMPERATURE REGULATION RESOLUTION 1 ° C
CONNECTION FOR DIGITAL THERMOREGULATORS VTF
CONNECTION FOR PROBES Pt100
TEMPERATURE REGULATION OF THE SAMPLE ± 0.5 ° C (VTF)
± 1 ° C (PT100)
TIMER Yup
REVERSE OF AUTOMATIC ROTATION Yup
PROBE DETECTOR Yup
INSTRUMENT LOCK Yup
"HOT TOP WARNING" Displayed
HEATING ACTIVATION BUTTON Yup
PROTECTION CLASS IP42
DIMENSIONS (LXHXP) 160x105x280
(6.3x4.1x11 in)
ADMITTED AMBIENT TEMPERATURE 5-40 ° C
POWER 630 W
WEIGHT 2.6 kg
(5.7 lb)
External dimensions of the product
Height: 105 mm
Width: 160 mm
Depth: 280 mm
Weight: 2.6 Kg
