C424001S

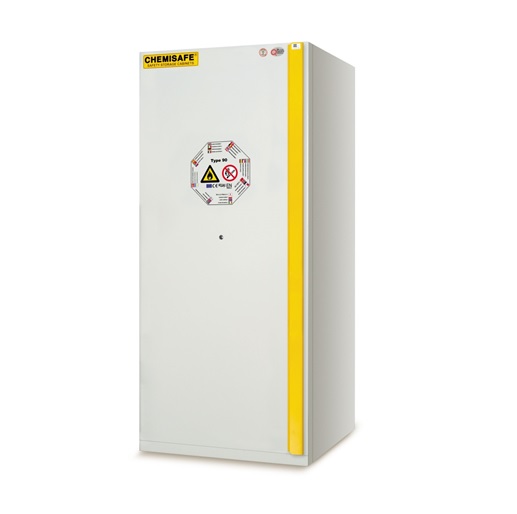

FIRE 90 BASIC cabinet type 90 - handle on the left

for flammable products - fire resistance 90 minutes

Made entirely of pickled steel sheet with thicknesses of 1 / 1.5 mm, cold pressed, painted with antacid epoxy powders and subsequent passage in a thermal tunnel at 200 ° C

Monolithic structure

Particular insulation formed by high-density fiber panels (free from Fibroceramics) for high temperatures (800 ° C) and calcium sulphate panels.

Internal body with internal finishing panels in melamine laminate with high resistance to even aggressive vapors

Certification according to the new standard EN 14470-1 - EN16121

Features:

Automatic hydraulic door closing with temperature above 47 ° C
Lock with key and door lock
Adjustable feet
Automatic closing valves (70 ° C) of the air inlet and outlet ducts, certified for 90 minutes, placed on the top and bottom of the cabinet.
Ejection hole diam. 100 mm. on the roof of the cabinet
Non-sparking zipper
3 cm thermodilating gasket. (DIN 4102).
Sealing gasket for vapors and dust.
3 tray shelves in painted steel (in the Basic version) / in stainless steel (in the EASY version) (capacity 12 liters approx.) Load 70 kg evenly distributed, certified. Dim. Mm. 793 x 420 x 39 h rounded edges. Adjustable in height with stainless steel pegs
Bottom basin in painted steel with support grid Dim. Mm.795 x 445 x 100 h (capacity approx.25 liters)
Ground terminal to prevent electrostatic charges.
Storage capacity: 550 liter volume - about 128/160 1 liter bottles per cabinet
External dimensions: 895x600x1950 mm (LxWxH).
Internal dimensions: 796x446x1540 mm (LxWxH).
Weight: about 275 kg.

LAPI TEST REPORT n ° 1582.0EN0100 / 10

CERTIFICATE BV n ° 547 / 001A

Available on request:

- additional shelves in painted steel / stainless steel

- yellow version
