Code V1220460

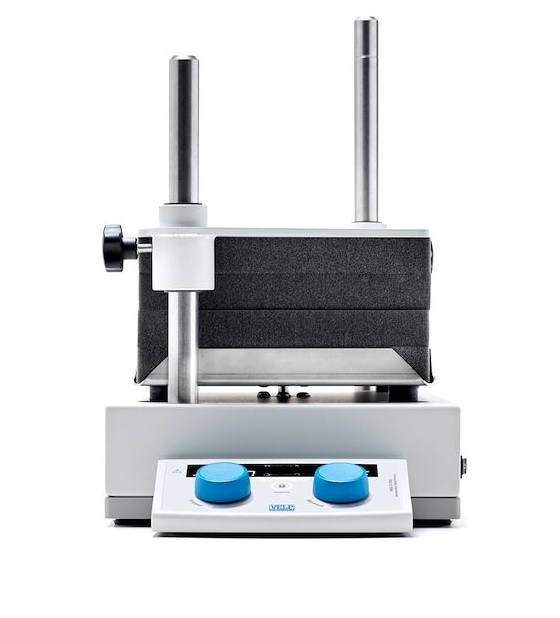

Vortex mixer mod. MULTI-TX5

up to 2500 rpm

Versatile, compact and easy to use multi-tube vortex mixer for high sample throughput

Outstanding performance and versatility for your mixing tasks

The MULTI-TX5 Digital is the exclusive solution for all the multi-tube mixing tasks, even the most challenging ones.

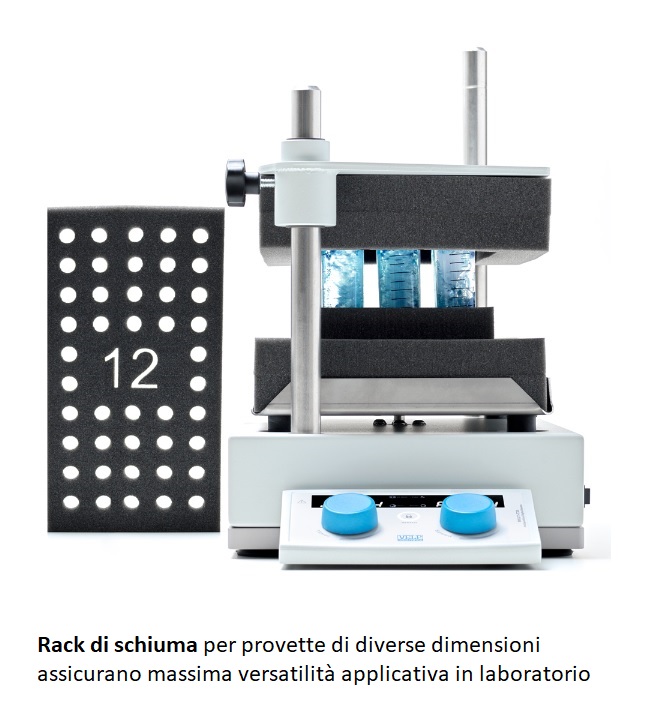

The MULTI-TX5 Digital supports various foam racks for different vortexing tubes being an extremely versatile multi-tube vortex mixer to emulsify, disintegrate, mix, or homogenize samples. Typical applications include suspensions, genotyping, DNA and RNA Testing.

You can rely on the MULTI-TX5 Digital for a wide variety of mixing tasks, as it stirs solutions from 100 up to 2500 rpm thanks to the powerful brushless motor.

Vigorous as well as gentle mixing is supported with premium performance, making MULTI-TX5 Digital ideal both for microbiology tasks and R&D or quality control in diverse industries like pharma, cosmetics, food and beverage, and chemicals.

Programmable operation for premium laboratory efficiency



The MULTI-TX5 Digital is equipped with some exclusive and extremely advanced features that optimize unattended operation:

  • Built-in timer to meet your lab workflow – from 1 min to 99 h 59 min (1 min steps)
  • Pulse mode thanks to which the instrument shakes the samples at full speed with an immediate ramp for 2 seconds and then stops for 1 second, repeating the operation until manually stopped or the timer reaches zero
  • Continuous mode with displayed time counting up
  • Autoreverse of the stirring direction that ensures enhanced mixing capabilities – from 5 s to 99 min 59 s (1 s steps)
  • Intermittent mode programs for enhanced programming of unattended operations – from 5 s to 99 min 59 s (1 s steps)
  • MULTI-TX5 Digital premium functions are easy to interact with thanks to the Smart User Interface with intuitive icons on the LED display.

Accessories included

•  Support for Ø12 tubes, 44 positions

Accessories on request
•  Support for Ø10 tubes, 44 positions
•  Support for Ø13 tubes, 44 positions
•  Support for Ø16 tubes, 44 positions
•  Support for Ø25 test tubes, 14 positions
•  Support for Ø29 tubes, 14 positions

USER INTERFACE Digital
SPEED CONTROL Electronic
STIRRING SPEED 100 - 2500 rpm
SPEED SETTING REGULATION 5 rpm
TIMER From 1 min to 99 h : 59 min
TIMER SETTING STEPS 1 min
AUTOREVERSE From 5 s to 99 min : 59 s
AUTOREVERSE SETTING STEPS 1 s
INTERMITTENT MODE From 5 s to 99 min : 59 s
INTERMITTENT MODE SETTING STEPS 1 s
PULSE MODE 2 s shaking, 1 s pause (cyclic)
LOCK FUNCTION Yes
MOTOR BLDC
TYPE OF MOVEMENT Orbital
ORBITAL DIAMETER 3.6 mm
WORKING IN CONTINUOUS Max 2 hours
POWER INPUT 40 W
WEIGHT 19 kg
42 lb
SUPPORT PLATE DIMENSION 294 x 194 mm
11.6 x 7.6 in
DIMENSIONS (WXHXD) 245 x 380 x 490 mm
9.6 x 14.9 x 19.3 in
External dimensions of the product
Height: 380 mm
Width: 245 mm
Depth: 490 mm
Weight: 19 Kg
