Code V1500531

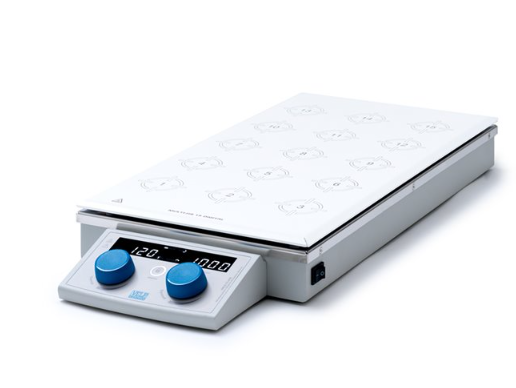

Digital Multi-position Hot Plate Stirrer MULTI-HS 15

up to 1000 rpm - 15 positions for 250 ml

Safe, compact and easy to use multiposition hotplate stirrers
- Synchronous stirring and heating of 15 positions (15 for 250 ml beakers)
- Homogeneous temperature up to 120°C for all positions
- CerAlTop™ plate ensures easy cleaning and maximum resistance
- Brushless motor ensures longevity and guarantees constant speed in all positions
- SpeedServo™ technology maintains speed constant when viscosity changes
- Easy to operate digital interface with icons
- The integral timer allows programming of unsupervised operation
- Programmable auto-reverse of the stirring direction
- Suitable for continuous work
- Safe hot plate warnings when the plate temperature is above 50°C
- The Lock feature prevents unintentional changes

Safety and resistance

The MULTI-HS Hot Plate Stirrers have a unique system of warnings: when the plate temperature reaches 50°C  the display will show a residual hot plate message preventing potential burning.

The Safety Lock feature avoids possible alteration of the working conditions or unintentional modification of the settings in order to meet all the Labs safety standards.

The CerAlTop™top plate is made of aluminum alloy that guarantees temperature homogeneity with optimum heat distribution and a high specific power thanks to the circular configuration. A thin layer of ceramic protecting the plate from scratches and chemicals and ensure high resistance to thermal stress and thermal shocks.

Smart User Interface for an easy use

The LED display is easy to read and thanks to the intuitive icons the operator has always the clear readout of the working conditions:
  • Heat activation
  • Set Point temperature
  • Timer activation
  • Auto-reverse option
  • Lock button

Two extremely precise turning knobs control the temperature and speed setting and for starting the heating is now necessary to tap the knob for complete safety.

By tapping at the same time both knobs is possible to access to the advanced menu for the most suitable configuration of all operating modes

Power and Accuracy

The extremely powerful Brushless motors are able to stir from 100 up to 1000 rpm offering a virtually unlimited duration. Size and shape of the magnetic stir bar determines the stirring efficiency at any given speed and it is always constant as viscosity changes with the torque compensation SpeedServo™.

The central button permits to set the timer in order to save time to the operator and enabling unsupervised work.

The Timer is settable from 1 min up to 99 hours and in the advanced menu is possible to configure it as follow:
  • Snap: timer countdown starts as soon as one main function (Temperature/Speed) is on
  • SetP: timer countdown starts when temperature set point is reached

The Auto-reverse option enhances the kinetics by changing the direction of the stirring direction. Is also possible to set the change in direction at the preferred interval of time.
USER INTERFACE Digital
MOTOR 15 Brushless motors
PLATE MATERIAL CerAlTopTM (ceramic coated aluminum alloy)
PLATE DIMENSION 432 x 223 mm
STIRRING VOLUME (H2O) 15 beakers of 250 ml
STIRRING POSITION DISTANCE 74 mm
STIRRING SPEED 100 - 1000 rpm
SPEED SETTING RESOLUTION 5 rpm
TEMPERATURE RANGE 0 - 120°C
TEMPERATURE SETTING RESOLUTION 1°C
HOT TOP WARNING On display (>50°C)
TIMER From 1 min to 99 h : 59 min
TIMER SETTING STEPS 1 min
AUTOREVERSE From 5 s to 99 min : 59 s
AUTOREVERSE SETTING STEPS 1 s
DIMENSIONS (WXHXD) 240x65x550 mm (9.4x2.6x21.7 in)
WEIGHT 4.8 kg (10.5 lb)
POWER INPUT 620W - 5,4A
WORKING IN CONTINUOUS Admitted
HEATING OUTPUT 600 W
External dimensions of the product
Height: 65 mm
Width: 240 mm
Depth: 550 mm
Weight: 4.8 Kg
